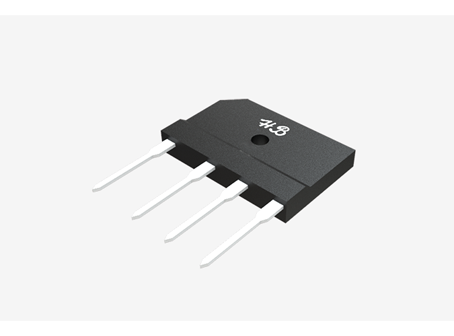

Troubleshooting Voltage Drop Issues in Bridge Rectifiers

Understanding Voltage Drop in Bridge Rectifiers

Bridge rectifiers are a crucial component in converting alternating current (AC) to direct current (DC) for a wide range of electronic systems. When you design or procure power supply components, you need to understand that voltage drop in a bridge rectifier can directly impact the performance and reliability of your equipment. Voltage drop occurs when the output voltage of the rectifier is lower than expected, usually due to the forward voltage drop of the diodes, excessive load, or circuit inefficiencies.

For B2B procurement, voltage drop is not just a technical issue; it affects your end products and your supply chain reliability. For example, in industrial equipment, even a small voltage drop can reduce motor torque or cause PLC modules to malfunction. In automotive electronics, voltage drops can lead to unstable sensor readings or intermittent failures. Consumer electronics may experience power inefficiencies, reduced battery life, or thermal stress due to insufficient rectified voltage.

By understanding the mechanisms behind voltage drop in bridge rectifiers, you as a buyer can make informed decisions about component selection, supplier evaluation, and system design.

Common Causes of Voltage Drop in Bridge Rectifiers

Voltage drop in a bridge rectifier can arise from several factors, many of which are directly related to component selection and circuit design. As a procurement professional, you need to evaluate each of these causes to ensure that the products you source meet your application requirements.

Common causes include:

Selecting the Right Bridge Rectifier to Minimize Voltage Drop

Selecting the appropriate bridge rectifier is a critical step in minimizing voltage drop and ensuring reliable operation. Here are the factors you should consider when sourcing bridge rectifiers:

• Low Forward Voltage Drop: Choose rectifiers with low forward voltage to reduce the total voltage loss. This is particularly important in low-voltage applications.

• Current Rating: Ensure the rectifier can handle both continuous and peak currents in your application. Exceeding ratings increases voltage drop and risk of failure.

• Temperature Range: Select components rated for the ambient operating conditions to maintain performance and minimize voltage drift.

• Package Type: Decide between surface-mount (SMD) and through-hole designs based on your PCB layout, thermal management, and assembly capabilities.

Hornby offers a range of high-performance bridge rectifiers designed to meet these criteria. With an annual production capacity of 6 billion semiconductor devices and international certifications such as ISO 9001, ISO 14001, TS16949, and UL, Hornby ensures that your selected bridge rectifiers provide stable performance across applications. Custom OEM/ODM solutions, automated SMD production, and quality inspection systems further guarantee low voltage drop and long-term reliability.

Troubleshooting Strategies for Voltage Drop Issues

If you encounter voltage drop in a bridge rectifier during operation or testing, following a structured troubleshooting process will help you identify and resolve the issue efficiently.

Step-by-step troubleshooting:

• Measure Input and Output Voltage: Confirm the AC input is within specification and the DC output is lower than expected.

• Check Diode Forward Voltage Drop: Test individual diodes to ensure their forward voltage does not exceed the datasheet value.

• Evaluate Load Conditions: Verify that the load does not exceed the rectifier’s rated current.

• Inspect Temperature Effects: Use thermal imaging or sensors to check for excessive heating that could increase voltage drop.

• Replace or Upgrade Rectifier: If voltage drop persists, consider switching to a rectifier with lower forward voltage, higher current rating, or improved thermal characteristics.

By implementing these steps, you can ensure that the bridge rectifiers you procure maintain proper voltage output and system stability.

Practical Applications

Understanding real-world applications of bridge rectifiers helps you evaluate suppliers and select components that meet your operational needs.

Industry Examples:

Hornby Bridge Rectifier Solutions for B2B Procurement

Hornby provides comprehensive solutions tailored for professional buyers, distributors, and brand manufacturers:

l Production Capacity: Annual output of 6 billion semiconductor devices.

l Certifications: ISO 9001, ISO 14001, TS16949, OHSAS 18001, UL.

l Product Range: Rectifier diodes, silicon bridge rectifiers, MOSFETs, and SMD devices.

l OEM/ODM Customization: Customized packaging, printing, and performance specifications available.

l Global Clientele: Trusted by Haier, Huawei, Samsung, TW-Solar, and others.

By sourcing bridge rectifiers from Hornby, you ensure that your products benefit from consistent quality, low voltage drop, and reliable supply chains.

Best Practices for Ensuring Reliable Power Supply

To maintain stable DC output and reduce voltage drop in your systems, you should follow these best practices:

• Component Selection: Always match diode specifications with voltage, current, and thermal requirements.

• Circuit Design: Optimize PCB layout for minimal resistance and adequate heat dissipation.

• Regular Monitoring: Conduct periodic voltage and temperature checks to prevent performance degradation.

• Supplier Evaluation: Choose certified and experienced suppliers like Hornby for guaranteed quality and support.

Checklist for B2B Procurement:

Frequently Asked Questions

Q1: What causes high voltage drop in bridge rectifiers?
A: Voltage drop is typically caused by diode forward voltage, excessive load, high temperature, or poor connections. Selecting the right diode and rectifier design reduces this risk.

Q2: Which bridge rectifier type is best for low-drop DC output?
A: Low forward-voltage silicon bridge rectifiers or high-efficiency Schottky bridge rectifiers are ideal for minimizing voltage drop in your system.

Q3: How can I ensure long-term reliability of rectifier devices?
A: Use certified components from suppliers like Hornby, ensure proper load handling, thermal management, and conduct regular maintenance checks.
