How to Choose a General Rectifier Diode

Choosing the right general rectifier diode is crucial for ensuring the efficiency and reliability of your electronic circuits. Rectifier diodes are semiconductor devices that convert alternating current (AC) to direct current (DC), a process known as rectification. With numerous types and specifications available, selecting the appropriate rectifier diode can be a daunting task. This article provides a comprehensive guide on how to choose the right general rectifier diode for your needs.

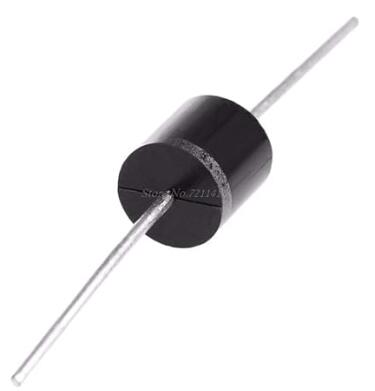

Understanding Rectifier Diodes

Before diving into the selection process, it's essential to understand what rectifier diodes are and their primary functions. Rectifier diodes allow current to flow in only one direction, blocking the reverse flow. This characteristic is critical in power supply circuits, where converting AC to DC is necessary for most electronic devices.

Key Specifications to Consider

When selecting a rectifier diode, several key specifications must be considered to ensure it meets the requirements of your application.

Peak Inverse Voltage (PIV)

Peak Inverse Voltage (PIV) is the maximum voltage that the diode can withstand in the reverse direction without breaking down. It's crucial to choose a diode with a PIV rating higher than the maximum voltage expected in your circuit to prevent damage. A good rule of thumb is to select a diode with a PIV rating at least 1.5 times the peak AC voltage.

Forward Current Rating (IF)

The Forward Current Rating (IF) indicates the maximum current the diode can conduct in the forward direction. Ensure that the diode you choose can handle the maximum current expected in your application. It's advisable to select a diode with a forward current rating higher than your circuit's maximum current to ensure reliable performance and avoid overheating.

Forward Voltage Drop (VF)

Forward Voltage Drop (VF) is the voltage loss across the diode when it is forward-biased. This parameter affects the efficiency of your circuit, as higher voltage drops result in more power loss. Low forward voltage drop diodes are preferred for applications where efficiency is critical.

Reverse Recovery Time (trr)

Reverse Recovery Time (trr) is the time it takes for the diode to switch from conducting to blocking mode. This specification is particularly important in high-frequency applications where fast switching is required. Choose a diode with a low reverse recovery time for circuits operating at high frequencies to minimize power loss and electromagnetic interference.

Types of Rectifier Diodes

Different types of rectifier diodes are available, each with specific characteristics suited for various applications.

Standard Rectifier Diodes

Standard rectifier diodes, such as the 1N5408, are suitable for low-frequency applications with moderate current requirements. They are commonly used in power supplies, battery chargers, and general rectification tasks.

Fast Recovery Diodes

Fast recovery diodes, like the UF4007, are designed for high-frequency applications. They offer low reverse recovery times, making them ideal for switch-mode power supplies and high-speed rectification tasks.

Schottky Diodes

Schottky diodes, such as the 1N5822, have a low forward voltage drop and fast switching capabilities. They are suitable for applications where efficiency and speed are critical, such as in power supplies and RF circuits.

Bridge Rectifiers

Bridge rectifiers are assemblies of four diodes configured to convert AC to DC. They are available in various current ratings and voltage specifications, suitable for power supply circuits requiring full-wave rectification.

Practical Considerations

When choosing a rectifier diode, consider practical aspects such as availability, cost, and packaging.

Availability

Ensure that the diode you select is readily available from reliable suppliers. Check for common part numbers and standard packages to avoid sourcing issues.

Cost

While higher-spec diodes may offer better performance, they also come at a higher cost. Balance performance requirements with budget constraints to choose a cost-effective solution.

Packaging

Rectifier diodes come in various packages, including through-hole and surface-mount options. Choose the packaging that best suits your circuit design and manufacturing process.

Conclusion

Selecting the right general rectifier diode involves understanding the key specifications, types, and practical considerations. By carefully evaluating Peak Inverse Voltage, Forward Current Rating, Forward Voltage Drop, and Reverse Recovery Time, you can ensure the diode meets your application’s requirements. Additionally, considering the availability, cost, and packaging will help you make a practical choice.
